Máy vắt sổ cào 4 chỉ Jack C5T-4-M03/333

Địa chỉ: Số 30/A3 đường X5, Khu Phố 3, Phường An Phú, TP Thuận An, Tỉnh Bình Dương

Email: [email protected]

Hotline: 0966159379 - 0984958938

Máy vắt sổ cào 4 chỉ Jack C5T-4-M03/333

  • 172
  • C5T-4
  • Liên hệ

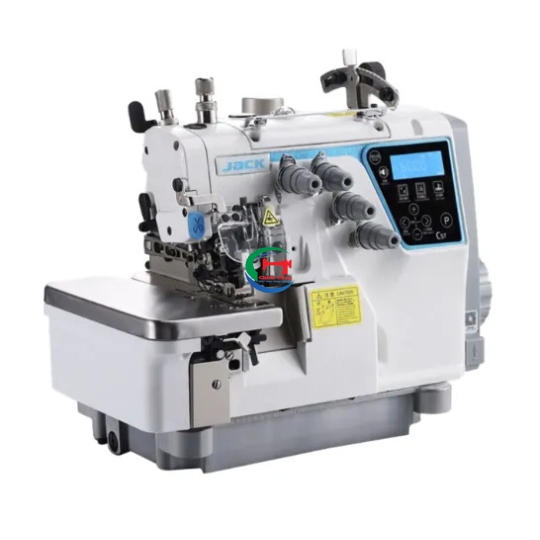

Jack C5T-4-M03/333

4-Thread, Integrated differential feeding, high speed computerised overlock machine

Top & bottom differential feeding, solve problems such as misalignment and distortion of the upper and lower layers during sewing.

Top Feed

Thanks to the adjustment gear, it is easy to adjust the differential ratio between the upper and lower feed.

Voice Guide

Learn the new functions thanks to the voice guide, otherwise you can only use it for errors and how to solve them, by clicking on the VOICE button.

Automatic Chaincut

Thanks to the photocells, the electronic cutter is automatic at the start and/or end of the seam.

Automatic Footlifter

Also the presser foot lifter is controlled electronically and automatically thanks to the photocells which lift it before and/or after sewing.

Acceleration And Deceleration

Response increased by 14.3%: acceleration from 0 to 5500rpm in 100ms; deceleration from 5500rpm to 0 in 180ms.

Three Sewing Modes

Manual mode with full use of the pedal, semi-automatic with the use of the pedal for sewing but cutting and presser foot lift are automatic thanks to the photocells and finally automatic where the machine works only with the photocells.

Wide Adaptability

The double feed of the feed dog facilitates the processing of different types of material.

Mesh Fabric Mode

Avoid starting the seam when the photocells are covered by very thin or transparent material such as tulle and organza, guaranteeing a perfect seam.

Short Thread Cut

Thanks to the automatic electric trimmer controlled by the photocells, the cut is 8mm in front and 5mm in the back.

Industry 4.0

Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines

Industry 4.0

Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines

Để sở hữu các dòng máy tốt giá tốt tại CTY TNHH TM VD XNK CHIẾN CÔNG vui lòng liên hệ với chúng tôi :

CTY TNHH TM VD XNK CHIẾN CÔNG

Địa chỉ : Số 30/A3 đường X5, Khu Phố 3, Phường An Phú, TP Thuận An, Tỉnh Bình Dương

Sđt: 0908 930 804 - 0966 159 379 - 0984 958 938

Email: [email protected]

Wesite: maymaychiencong.com

Thông số kỹ thuật Máy vắt sổ cào 4 chỉ Jack C5T-4-M03/333

Model Jack C5T-4-M03/333
Function Medium / Light
Needle DCx27 #11
No. of Needles 2
Needle Distance 2
Stitch Width 4mm
Stitch Length 4.6mm
Differential Ratio 0.7-2
Presser Foot Lifting Height 5.5mm
Max Speed 6000 s.p.m
Volume 505 x 360 x 565 mm
Weight 29.2kg / 39.8kg
